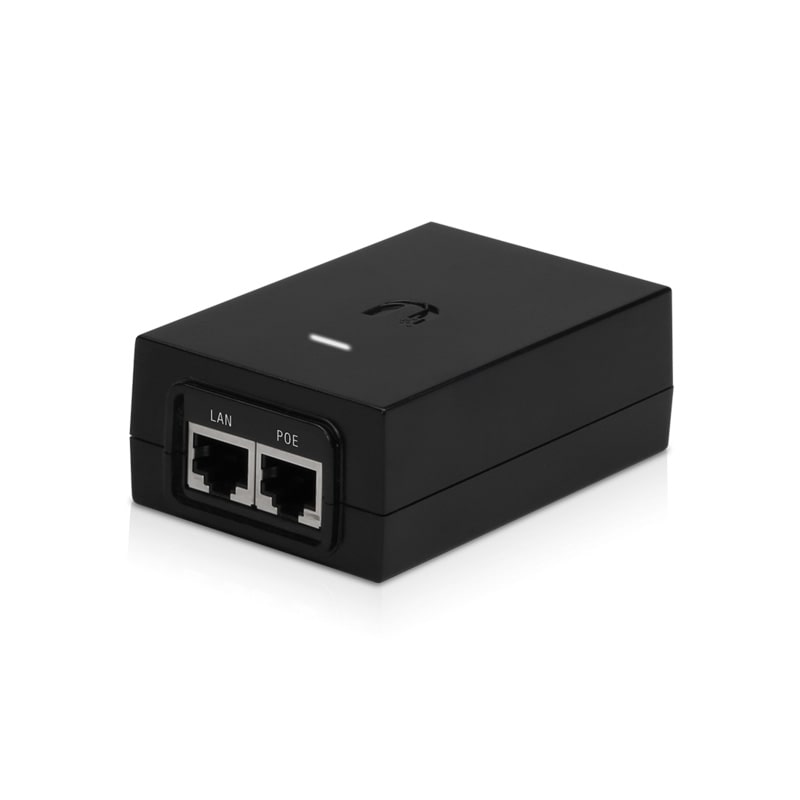

Ubiquiti PoE Injector, 50V 60W

1,200.00฿

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Surge protection
Clamping protection
Maximum surge discharge

Line ID: @krsystems

หมวดหมู่: Accessories, Ubiquiti

POE-50-60W
Dimensions	101 x 60 x 33 mm (3.98 x 2.36 x 1.30”)
Weight	192 g (6.77 oz)
Output Voltage	50VDC @ 1.2A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	No
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	1.3A @ 120VAC, 0.75A @ 230VAC
Inrush Current	<100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency	85 %
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	–
4-Pair Powering	Pins 1, 2, 4, 5 ( ) and Pins 3, 6, 7, 8 (-)
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL

น้ำหนัก	0.19 กก.
ขนาด	10 × 6 × 3.3 เซนติเมตร
