UniFi UAP-AC-IW
4,150.00฿
- 2.4GHZ max speed 300Mbps
- 5GHz speed 867Mbps
- (3) Gigabit LAN Ports
- (1) Dual-Band Antenna, Single-Polarity, 2.4GHz 1dBi, 5GHz 2dBi
- There is no PoE Injector in the kit.
Note: There is no PoE Injector in the kit.
Easier Than You Think
UniFi® AC In-Wall is ideal for new types of installations. Designed to wall-mount as a dual-band Wi-Fi 802.11ac access point with 2 Gigabit Ethernet ports.
- Scalable. Dedicated Wi-Fi per room
- Easy Setup, Monitoring, and Control
- Fast. Two radios, 802.11ac
Versatile Data and PoE Output

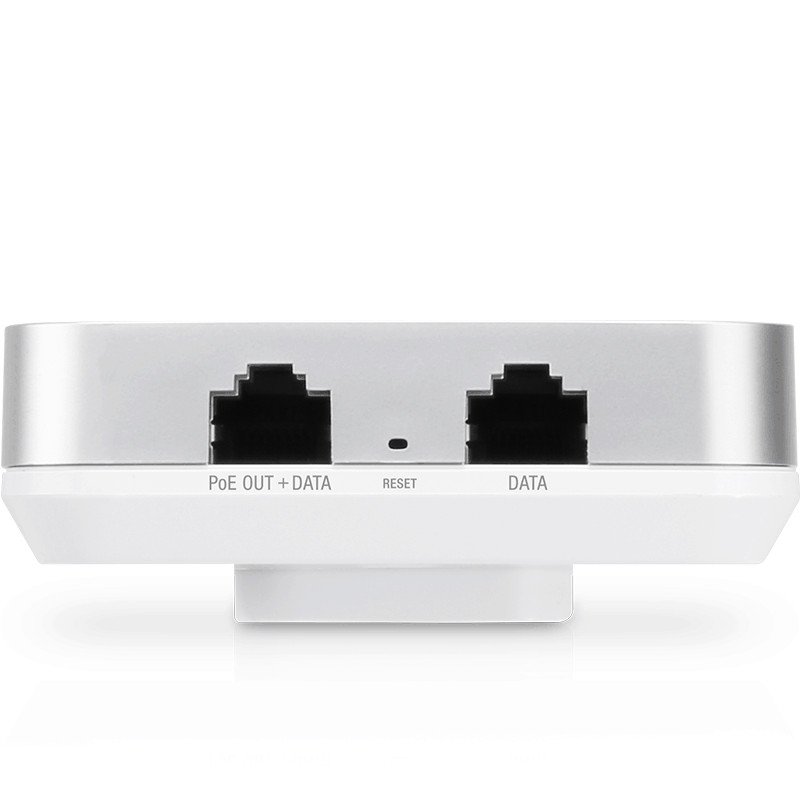

An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.
Product Description
UniFi UAP-AC-IW
Ubiquiti UniFi AC In-Wall (UAP-AC-IW) 802.11ac Standard Indoor Wireless Access Point Device with 2 Gigabit Ethernet Ports, 1 in it can connect 802.3af devices, 2×2 MiMo antennas.
Suitable for new or retrofitted installation, of UniFi® AC In-Wall Designed to convert the Wall Ethernet Jack into a Dual-Band 802.11AC Wi-Fi connection with 2 Gigabit Ethernet ports, one that provides PoE for power supply, and 802.3af device connections to UniFi NETWORKS, AC In-Wall has a high wireless speed of up to 1167 Mbps.
| UAP-AC-IW | |
|---|---|
| Brand | Ubiquiti |
| Model | UAP-AC-IW |
| Networking Interface | (3) 10/100/1000 Ethernet Ports |
| Power Method | 802.3at PoE Supported |
| Power Supply | UniFi PoE Switch (Not Included) |
| Maximum Power Consumption with PoE Passthrough |
7W 19W* |
| Maximum TX Power 2.4GHz 5GHz |
20dBm 20dBm |
| Antennas 2.4GHz 5GHz |
(1) Dual-Band Antenna, Single-Polarity 1dBi 2dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Mounting | 1-Gang Electrical Wall Box (Not Included) |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Dimensions | 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″) |
| Weight | 200 g (6.43 oz) |
| Advanced Traffice Management | |
| VLAN | 802.1Q |
| Advanced Qos | Per-User Rate Limiting |
| Guest Traffic isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Supported Data Rates (Mbps) | |
| Standard | Data Rates |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| Download | Quick Start Guide Datasheet |
| Weight | 0.20 kg |
|---|---|
| Dimensions | 13.97 × 8.67 × 2.575 cm |
