UniFi Switch Pro 48 PoE

Name: UniFi Switch Pro 48 PoE
SKU: 767
Price: 42590.00 THB
Availability: InStock

42,590.00฿

หมวดหมู่: Ubiquiti, Ubiquiti Switch

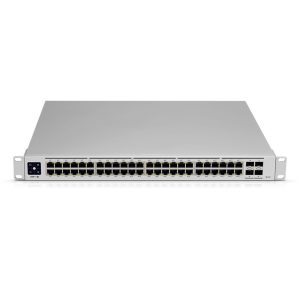

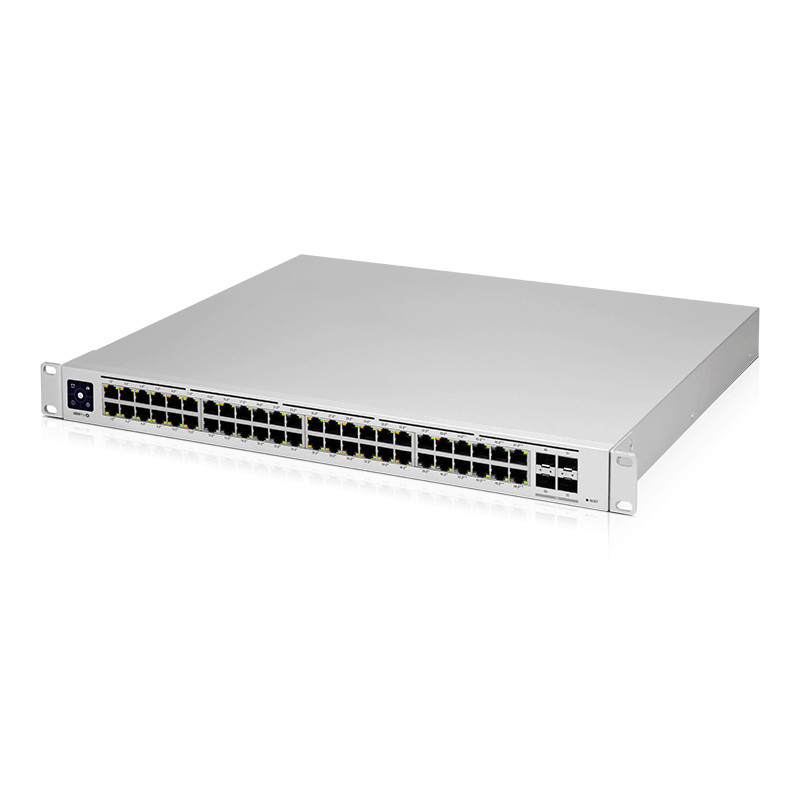

UniFi Switch Pro 48 PoE Gen2 (USW-PRO-48-POE)

UniFi Switch Pro 48 PoE has many features of Layer 2 capabilities and incorporates Layer 3 functions such as Routing, VLAN, and DHCP Server.

Brand	Ubiquiti
Model	USW-Pro-48-PoE
Dimensions	442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″)
Weight With Brackets	6.25 kg (13.78 lb) 6.34 kg (13.98 lb)
Interfaces Networking Management	(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP Ethernet Ports Ethernet In-Band
Total Non-Blocking Throughput	88 Gbps
Switching Capacity	176 Gbps
Forwarding Rate	130.944 Mpps
Power Method	100-240VAC, 50/60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply	AC/DC, Internal, 660W
Voltage Range	100 to 240VAC
Max Power Consumption (Excluding PoE Output)	60W
LEDs System RJ45 Data Ports SFP Data Ports	Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 – 90% Noncondensing
Certifications	CE, FCC, IC
Total Available PoE	600W
PoE Interfaces Ports 1-40 Ports 41-48 802.3af/at 802.3bt	PoE IEEE 802.3af/at (Pins 1, 2 ; 3, 6- ) 60W PoE IEEE 802.3af/at/bt (Pins 1, 2 ; 3, 6- ) (Pair A 1, 2 ; 3, 6- ) (Pair B 4 , 5 ; 7, 8- )
Max. PoE Wattage per Port by PSE 802.3at 802.3bt	32W 64W
Voltage Range 802.3af Mode 802.3at/bt Mode	44-57V 50-57V
Warranty	1 year
Download	Quick Start Guide Datasheet
