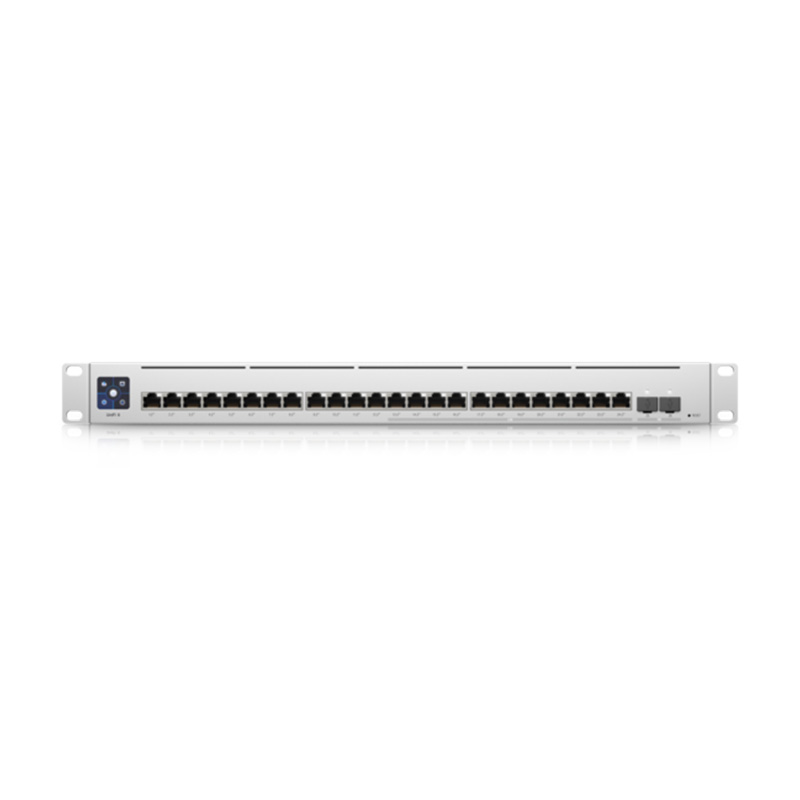

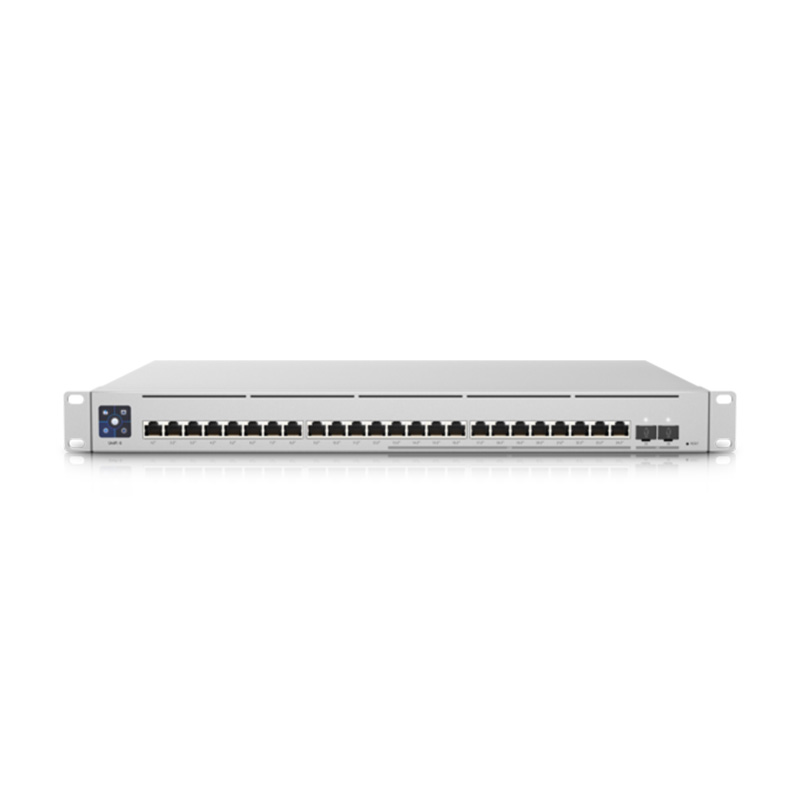

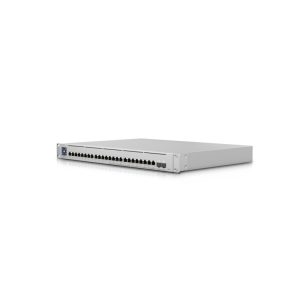

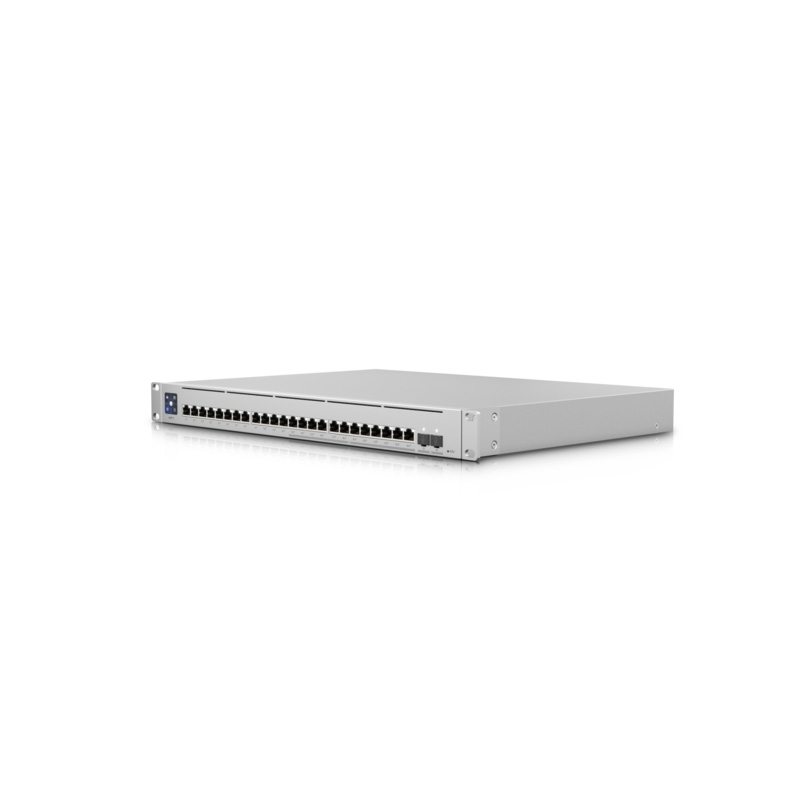

UniFi Switch Enterprise 24 PoE
33,450.00฿
- (12) 2.5G 802.3af/at PoE RJ45 ports
- (12) 1G 802.3af/at PoE RJ45 ports
- (2) 10G SFP ports
- 400W total PoE capacity
UniFi Switch Enterprise 24 PoE
Managed Layer 3 Switch comes with (12) 2.5G RJ45 ports and PoE (802.3at) for use with WiFi6 Access Points, (12) Gigabit RJ45 ports with PoE, and (2) 10G SFP ports for Uplinks via Fibers cables.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″) |
| Weight | Without Mount: 5.11 kg (11.27 lb) With Mount: 5.2 kg (11.46 lb) |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP Interfaces | (2) 1/10G SFP |
| PoE Interfaces | (24) PoE IEEE 802.3af/at (Pins 1, 2 ; 3, 6-) |
| Max. PoE Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP | White: Link or Activity |
| น้ำหนัก | 5.11 กก. |
|---|---|
| ขนาด | 44.24 × 4.37 × 32.5 เซนติเมตร |
