(R6M51A) Access Point “Aruba” Instant On AP22

Name	(R6M51A) AP “Aruba” Instant On AP22 with 12V/18W Power adaptor Worldwide Bundle
Ports	1x uplink Gigabit Ethernet port, with POE-in support (802.3af)
Wi-Fi Antenna	Integrated down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Input Voltage	Power over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately
Power Consumption	Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio Coverage	Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Dimensions	37x 160 x 160 mm
Weight	500 g
Warranty	Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

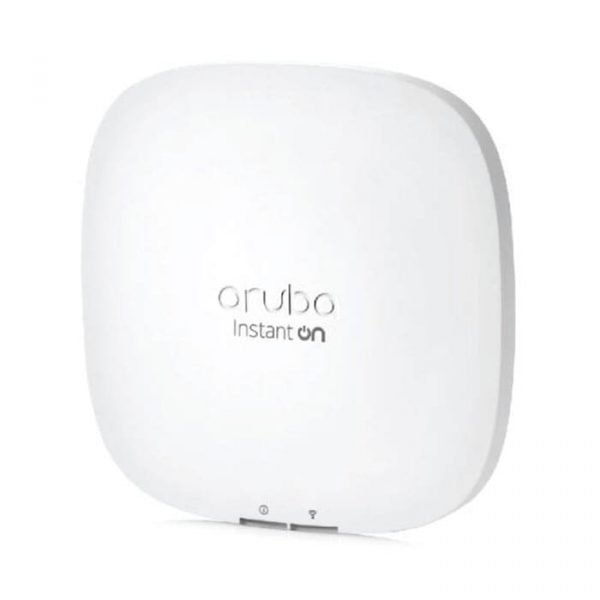

Aruba Instant On AP22 (R6M51A)

High-speed Wi-Fi designed with small businesses in mind.

Perfect for reimagined offices, schools, and retail/hospitality businesses.

Key Features

• Fast 802.11ax, 2X2:2
• Wi-Fi CERTIFIED 6™ (Wi-Fi 6)
• MU-MIMO performance
• Smart Mesh Wi-Fi support
• Built-in Wi-Fi router/gateway
• functionality
• Integrated Bluetooth
• Easy-to-use web and mobile app for
• setup and management
• Secure Guest Wi-Fi with simple setup
• Application classification, control
• and visibility

Small businesses are facing a number of challenges—challenges that need constant KEY FEATURES attention. The right technology can help you stay on top of them and stay ahead of the curve. Technologies like the ones found inside the AP22 (R6M51A).

To meet the increasing needs and volumes of connected devices, Aruba Instant On is announcing its first Wi-Fi 6 access point: AP22. Delivering higher capacity and greater performance at a competitive price, the AP22 is the perfect access point for small businesses with expanding mobile, cloud, and IoT requirements.

Wi-Fi Certified 6TM AP22 access points deliver faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP22, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future.

Already have a demanding mobile and/or IoT environment? Delivering 4x the capacity of 802.11ac access points, AP22 can provide an exceptional user experience in a
broad variety of scenarios. Remote offices. Hybrid classrooms. Hotels and restaurants. Reimagined retail and hospitality. The AP22 can handle them all without breaking a sweat.

Want to make wires a thing of the past? Combine the R6M51A with Smart Mesh Wi-Fi for complete wireless coverage.

Want to keep bandwidth hogs and unknown devices off your network? Banish them with the flip of your thumb on the Aruba Instant On App.

We know the critical role Wi-Fi plays in business today. No business can’t afford downtime. The Aruba Instant On AP22, at every level, is designed for rapid deployment and simplified management. Be it mounting hardware, or remote device management, or having access to the latest business-grade software, the AP22 lives to make your life easier.

OVERVIEW

AP22 (R6M51A) is a Wi-Fi CERTIFIED 6™ (Wi-Fi 6) access point that brings higher capacity, efficiency, and performance to small businesses with dense deployments. With a maximum aggregate data rate of 1.7 Gbps, AP22 access points deliver the speed and reliability small businesses need.

ORTHOGONAL FREQUENCY-DIVISION MULTIPLE ACCESS (OFDMA)

Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously— regardless of device or traffic type. This improves efficiency by boosting overall capacity, while reducing latency.

TARGET WAKE TIME (TWT)

Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps reduce power consumption, extending the battery life of clients.

MULTIUSER, MULTIPLE INPUT, MULTIPLE OUTPUT (MU-MIMO)

Allows you to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time.

1024-QUADRATURE AMPLITUDE MODULATION (1024-QAM)

Enables a 25% data increase over 256 QAM, improving throughput in your access points and devices.

TRUSTED PLATFORM MODULE (TPM)

The R6M51A access points have an installed TPM for secure storage of credentials, keys, and boot codes.

BASIC SERVICE SET COLORING (BSS COLORING)

Allows the network to assign a “color” tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time—as long as they are different colors.

ARUBA ADVANCED CELLULAR COEXISTENCE (ACC)

Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment.

LOW DENSITY PARITY CHECK (LDPC)

Delivers high-efficiency error correction for increased throughput.
