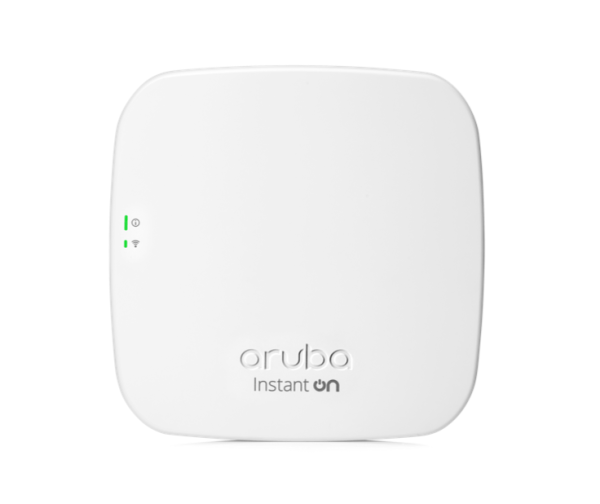

(R4W02A) Access Point “Aruba” Instant On AP22

SKU	R4W02A
Brand	Aruba
Model	(R4W02A) Access Point “Aruba” Instant On AP22
Ports	1 x Uplink Gigabit Ethernet port, with POE-in support
Wi-Fi Radio Specifications	Dual radio for simultaneous dual-band operation, 5 GHz 802.11ax 2×2 MIMO for up to 1.2Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
Dimension	160 x 160 x 37 mm
Weight	500 g
Mounting	Indoor
Warranty	2 Years Warranty by HPE Thailand



Aruba Instant On AP22 (R4W02A)

High-speed Wi-Fi designed with small businesses in mind.

Perfect for reimagined offices, schools, and retail/hospitality businesses.

Key Features

• Fast 802.11ax, 2X2:2
• Wi-Fi CERTIFIED 6™ (Wi-Fi 6)
• MU-MIMO performance
• Smart Mesh Wi-Fi support
• Built-in Wi-Fi router/gateway
• functionality
• Integrated Bluetooth
• Easy-to-use web and mobile app for
• setup and management
• Secure Guest Wi-Fi with simple setup
• Application classification, control
• and visibility

Small businesses are facing a number of challenges—challenges that need constant KEY FEATURES attention. The right technology can help you stay on top of them and stay ahead of the curve. Technologies like the ones found inside the AP22.

To meet the increasing needs and volumes of connected devices, Aruba Instant On is announcing its first Wi-Fi 6 access point: AP22. Delivering higher capacity and greater performance at a competitive price, the AP22 is the perfect access point for small businesses with expanding mobile, cloud, and IoT requirements.

Wi-Fi Certified 6TM AP22 access points deliver faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With the AP22, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future.

Already have a demanding mobile and/or IoT environment? Delivering 4x the capacity of 802.11ac access points, AP22 can provide an exceptional user experience in a
broad variety of scenarios. Remote offices. Hybrid classrooms. Hotels and restaurants. Reimagined retail and hospitality. The AP22 can handle them all without breaking a sweat.

Want to make wires a thing of the past? Combine the AP22 with Smart Mesh Wi-Fi for complete wireless coverage.

Want to keep bandwidth hogs and unknown devices off your network? Banish them with the flip of your thumb on the Aruba Instant On App.

We know the critical role Wi-Fi plays in business today. No business can’t afford downtime. The Aruba Instant On AP22, at every level, is designed for rapid deployment and simplified management. Be it mounting hardware, or remote device management, or having access to the latest business-grade software, the AP22 lives to make your life easier.

OVERVIEW

AP22 is a Wi-Fi CERTIFIED 6™ (Wi-Fi 6) access point that brings higher capacity, efficiency, and performance to small businesses with dense deployments. With a maximum aggregate data rate of 1.7 Gbps, AP22 access points deliver the speed and reliability small businesses need.

ORTHOGONAL FREQUENCY-DIVISION MULTIPLE ACCESS (OFDMA)

Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously— regardless of device or traffic type. This improves efficiency by boosting overall capacity, while reducing latency.

TARGET WAKE TIME (TWT)

Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps reduce power consumption, extending the battery life of clients.

MULTIUSER, MULTIPLE INPUT, MULTIPLE OUTPUT (MU-MIMO)

Allows you to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time.

1024-QUADRATURE AMPLITUDE MODULATION (1024-QAM)

Enables a 25% data increase over 256 QAM, improving throughput in your access points and devices.

TRUSTED PLATFORM MODULE (TPM)

All Aruba Instant On access points have an installed TPM for secure storage of credentials, keys, and boot codes.

BASIC SERVICE SET COLORING (BSS COLORING)

Allows the network to assign a “color” tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time—as long as they are different colors.

ARUBA ADVANCED CELLULAR COEXISTENCE (ACC)

Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment.

LOW DENSITY PARITY CHECK (LDPC)

Delivers high-efficiency error correction for increased throughput.

TRANSMIT BEAMFORMING (TXBF)

Delivers increased signal reliability and range.
