Name | (JL810A) Switch “Aruba” Instant On 1830 8G Sw (8 x 10/100/1000) |
Ports | 7 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE |
Layer Services Supported | Layer 2 Support |
MAC Address Table Size | 8K |
Processor and Memory | 800 MHz Cortex A9 Single-Core, 512 MB RAM, 256 MB Flash Memory, 1.5MB Buffer |
Throuhput | 11.9 Mpps |
Switching capacity | 16 Gb/s |
PoE capability | Supports PoE Upstream |
Management features | Supports Mobile App & Cloud Management |
Power | External 12 VDC at 1 A |
Dimensions | 6.8 x 6.2 x 1.5″ / 173 x 157 x 39.1 mm |
Weight | 1.7 lb / 0.77 kg |

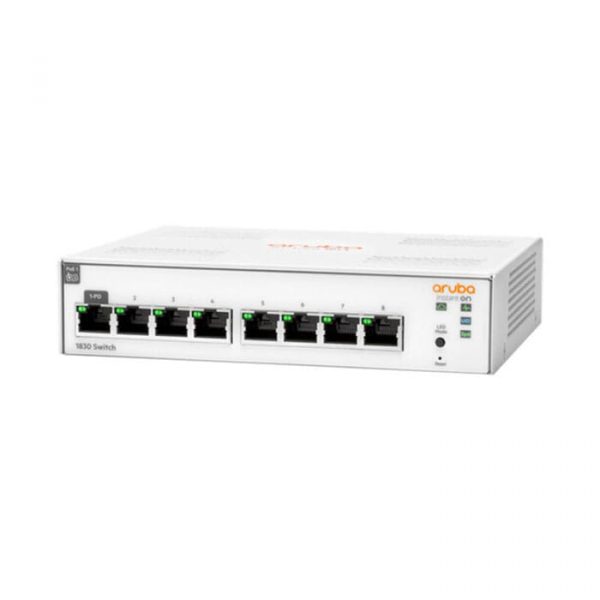

ขาย Aruba Instant On 1830 Switch (JL810A)
Aruba Instant On 1830 Switch (JL810A) provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesseslooking for cost-effective wired infrastructure to keep upwith evolving network demands.These entry-level, smartmanaged switchesofferLayer 2 switching capabilities,Gigabit connectivity, along with flexible management modes – all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.
Gigabit Connectivity for Small Businesses
The JL810A Switch is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models. Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network. With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
Simplify Network Deployment and Management
The Aruba Instant On 1830 Switch Series features easy-to-use, out-ofthe-box, plug-and-play deployment.
The JL810A can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
Keep Your Business Protected with Integrated Security Features
The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Better Energy Efficient Features for Reducing Environmental Footprint
The JL810A Switch has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).
