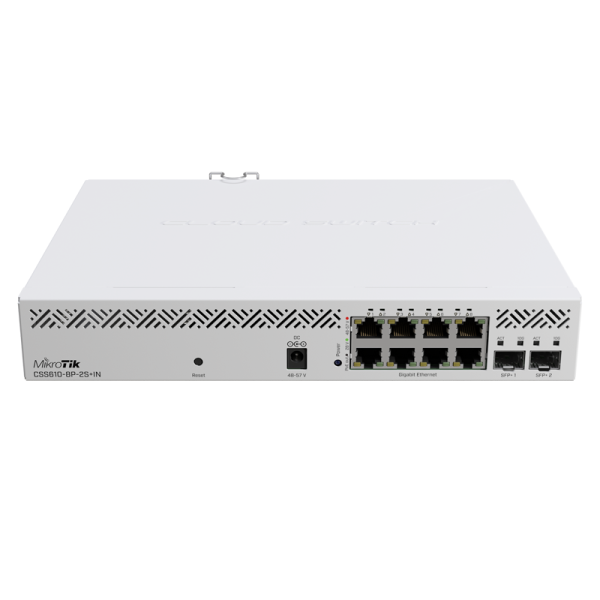

CSS610-8P-2S+IN
>>>รับประกันตลอดอายุการใช้งาน<<<
ข้อมูลอุปกรณ์
Specifications
Details | |
---|---|
Product code | CSS610-8P-2S+IN |
Operating System | SwitchOS Lite |
Storage size | 64 KB |
Storage type | FLASH |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering
Details | |
---|---|
Number of AC inputs | 1 |
AC input range | 100-240 |
Number of DC inputs | 1 (DC jack) |
DC jack input Voltage | 48-57 V |
Max power consumption | 162 W |
Max power consumption without attachments | 12 W |
Cooling type | Passive |
PoE-out
Details | |
---|---|
PoE-out ports | Ether1-Ether8 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1000 mA |
Max out per port output (input 30-57 V) | 625 mA |
Total output power | 140 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
Details | |
---|---|
SFP+ ports | 2 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
